Fallout Re: MBT's
Well equipment is what I do here so...
So what's hitting the news right now is a previously unidentified Israeli tank that is on my work list along with the M113 SPIKE NLOS platform the TAMUZ. This was going to be part of an "update" on what I'm working for this thread but, I couldn't wait.
http://www.armyrecognition.com/weapo...s_2107143.html

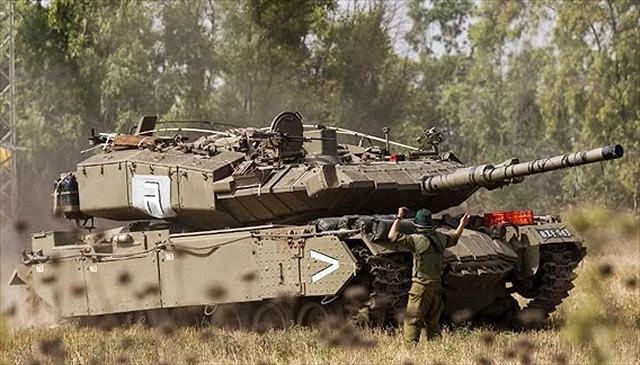

Click image for larger version Name: Magach_5_Spike_anti-tank_missile_tank_Israel_Israeli_army_IDF_004.jpg Views: 1174 Size: 64.1 KB ID: 13046
Note NLOS antenna
near side aft end of
the turret.

Click image for larger version Name: MAGACH-SPIKENLOS-curvedantenna_zps6071c40e.jpg Views: 247 Size: 62.2 KB ID: 13047
As noted in header.

Click image for larger version Name: MAGACH-SPIKENLOS-boxlauncherconcept_zps751e6c68.jpg Views: 261 Size: 48.9 KB ID: 13048
SPIKE NLOS launcher
up. Holds 12 missiles.

Click image for larger version Name: 63533253_zps374b70ce.jpg Views: 311 Size: 53.1 KB ID: 13049
TAMUZ

Regards,
Pat
